Permastore Glass Fused Tanks

Glass-Fused-to-Steel Industrial Tanks

Kingspan Water Tanks is the Australian distributor for Permastore Tanks, which we supply and install in addition to our Rhino Tank range meeting all your commercial water tank needs. With 50 years’ experience in the water storage industry, Permastore is a leading manufacturer of Glass-Fused-to-Steel modular bolted tanks.

Glass-Fused-to-Steel (GFtS), also known as Glass-Lined-Steel (GLS), is the ultimate tank solution utilising a proven product with significant advantages. We recommend Permastore tanks for applications where a poly lined tanks may not be suitable or where the tank capacity exceeds 2.5 Megalitres.

  • High performance and hard wearing
  • As strong and flexible as steel
  • Inert Silica Glass
  • Colour fast / UV Stable

ECOFUSION®

Applications: Livestock Effluent Tanks, Moist Grain Silos, Forage Silos

ECOFUSION® is Permastore’s agricultural contact surface finish that delivers a low-cost functional solution for the storage of farming products, including agricultural livestock effluent.

ECOFUSION® is the established choice for agricultural slurry stores, moist grain, and forage silos.

Product Specifications

  • Application: pH range: 4-9

  • Type: 2 coat/1 fire

  • Made to the requirements of BS 7793-1

  • Thickness: 180-360 microns

  • Test Regime: 9-volt testing – using sampling procedures in accordance with ISO 2859-1

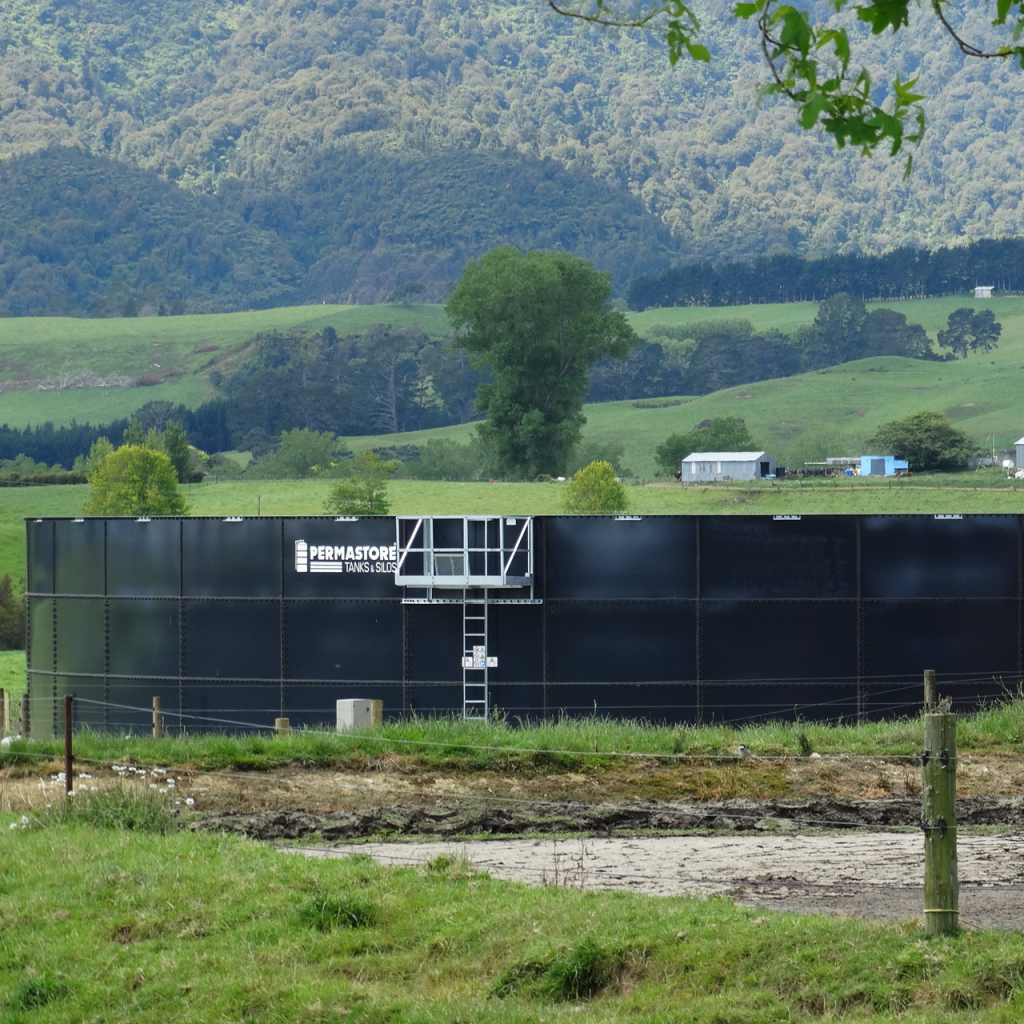

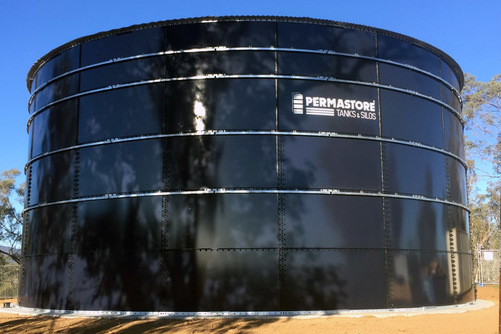

Permastore ecofusion tank installed

ISOFUSION® V700

Applications: Edible/Vegetable Oils, Dry Bulk Solids, Farm Digesters (Liquid Zone), Storm/Fire Water, Potable Water, Municipal Sludge Storage / Treatment, Municipal Mesophilic Digester

ISOFUSION® V700 is Permastore’s primary industrial contact surface finish generally for use with bulk solids, storm water, filter tanks and sludge storage.

The contact surface of every panel supplied is 100% factory tested and inspected at an exacting standard that guarantees ‘zero discontinuity/defect free’ tank panels when tested at 700 Volts in accordance with Test A of EN ISO 2746:2015.

Product Specifications

  • Application: pH range: pH 3-9

  • Type: 2 coat/1 fire

  • Made to the requirements of EEA 7.20

  • Glass Coating Thickness: 200-360 microns

  • Made to the glass coating requirements of AWWA D103-19 – section 12.4

  • Made to the requirements of EN ISO 28765:2016

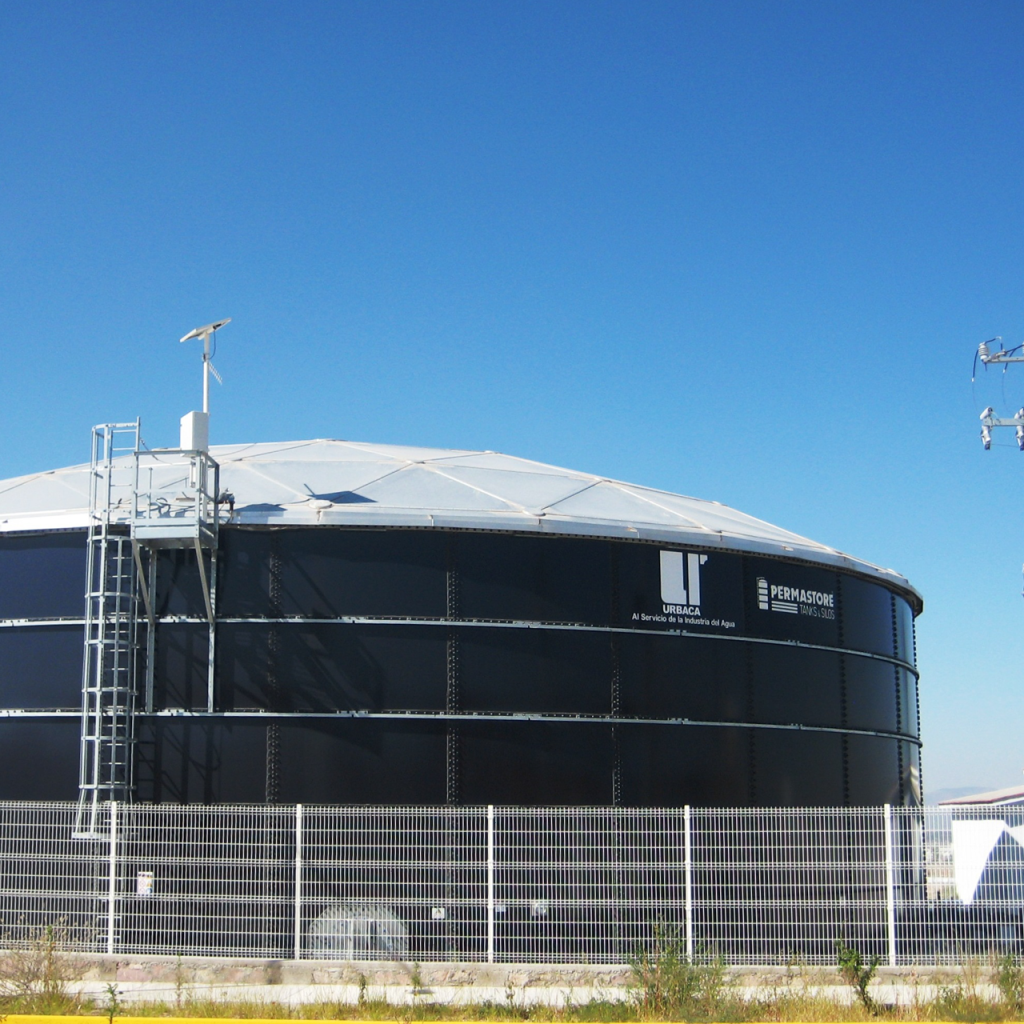

Permastore isofusion tank installed

TRIFUSION®

Applications: Edible/Vegetable Oils, Farm Digesters, Industrial Effluent, Potable Water, Food Process Washings, Municipal Sludge Storage / Treatment, Liquid Leachates, Municipal Mesophilic Digester, Thermophilic Digester

TRIFUSION® is Permastore’s proven Glass-Fused-to-Steel high quality contact surface finish that sets the benchmark for use in the more demanding areas of industrial effluent treatment and sludge digestion.

The contact surface of every panel supplied is 100% factory tested and inspected at an exacting standard that guarantees ‘zero discontinuity/defect free’ tank panels when tested at 1100 Volts in accordance with Test A of EN ISO 2746:2015.

Product Specifications

  • Application: pH 2-11
  • Type: 3 coat/2 fire
  • Made to the  requirements of EN ISO 28765:2022
  • Test Regime: Zero discontinuities at 1100V in accordance with Test A of EN ISO 2746:2015
  • Made to the glass coating requirements of AWWA D103-19 – Section 12.4
  • Made to the quality requirements of EEA 7.20

All applications are subject to chemical concentration and temperature considerations. All specifications relate to the contact surfaces only. A detailed specification is available on request.

Permastore trifusion tank installed

TRIFUSION® PLUS

Applications: Aggressive/Chemical Industrial Effluents, Thermophilic Digester, High Temperature Applications, Extreme Leachates

TRIFUSION® PLUS surface coating takes its acclaimed TRIFUSION® standard to an even higher level, for use in the most extreme of environments. Aggressive chemical and high temperature processes can be considered with this high-quality contact surface finish.

The contact surface of every panel supplied is 100% factory tested and inspected at an exacting standard that guarantees ‘zero discontinuity/defect free’ tank panels when tested at 1500 Volts in accordance with Test A of EN ISO 2746:2015.

Product Specifications

  • Application: pH range: 1-14

  • Type: 3 coat/2 fire

  • Made to the requirements of EEA 7.20

  • Test regime: Zero discontinuity when tested at 1500 Volts in accordance with Test A of EN ISO 2746:2015

  • Thickness: 340-500 microns

  • Meets/exceeds quality requirements of EN ISO 28765:2022

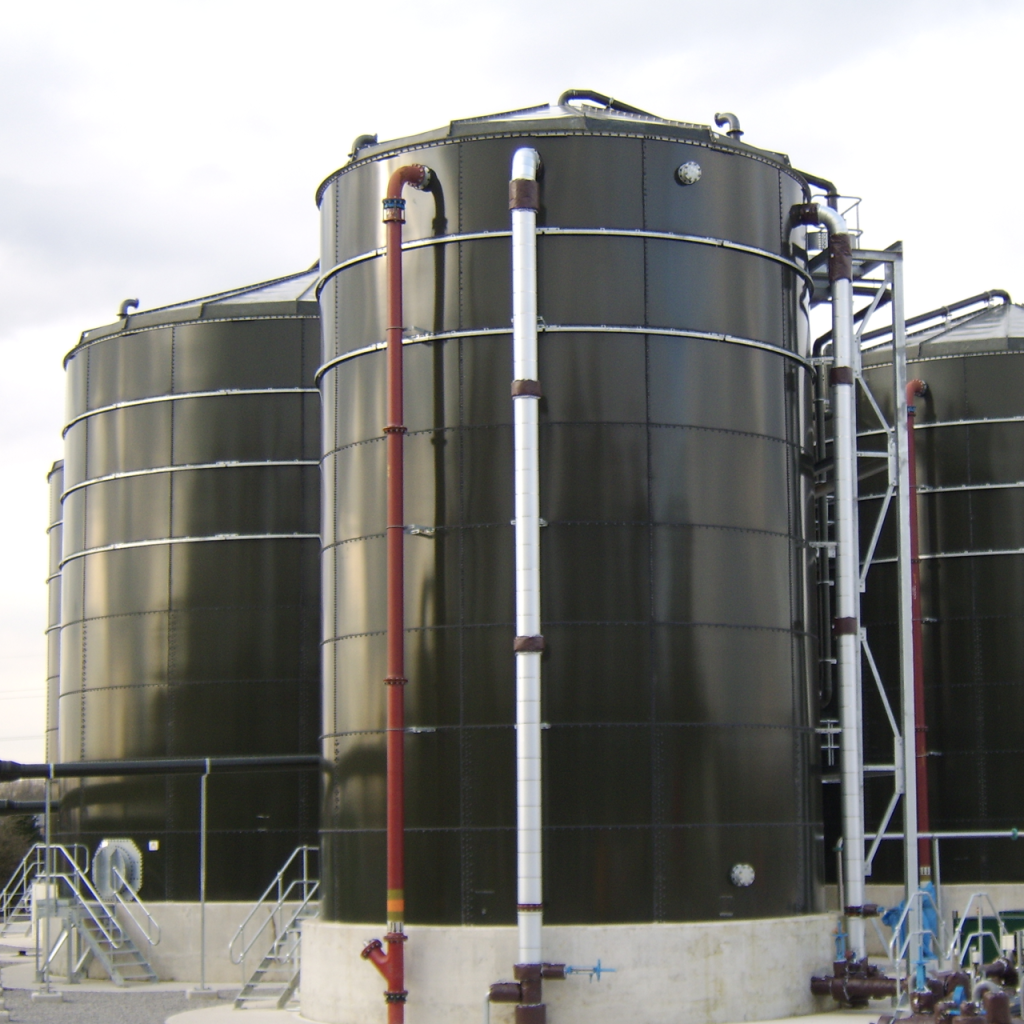

Permastore trifusion plus tank installed
