STANDARD INCLUSIONS
Leaf Strainer
25mm Ball Valve
Mozzie Stoppa
Overflow Flange

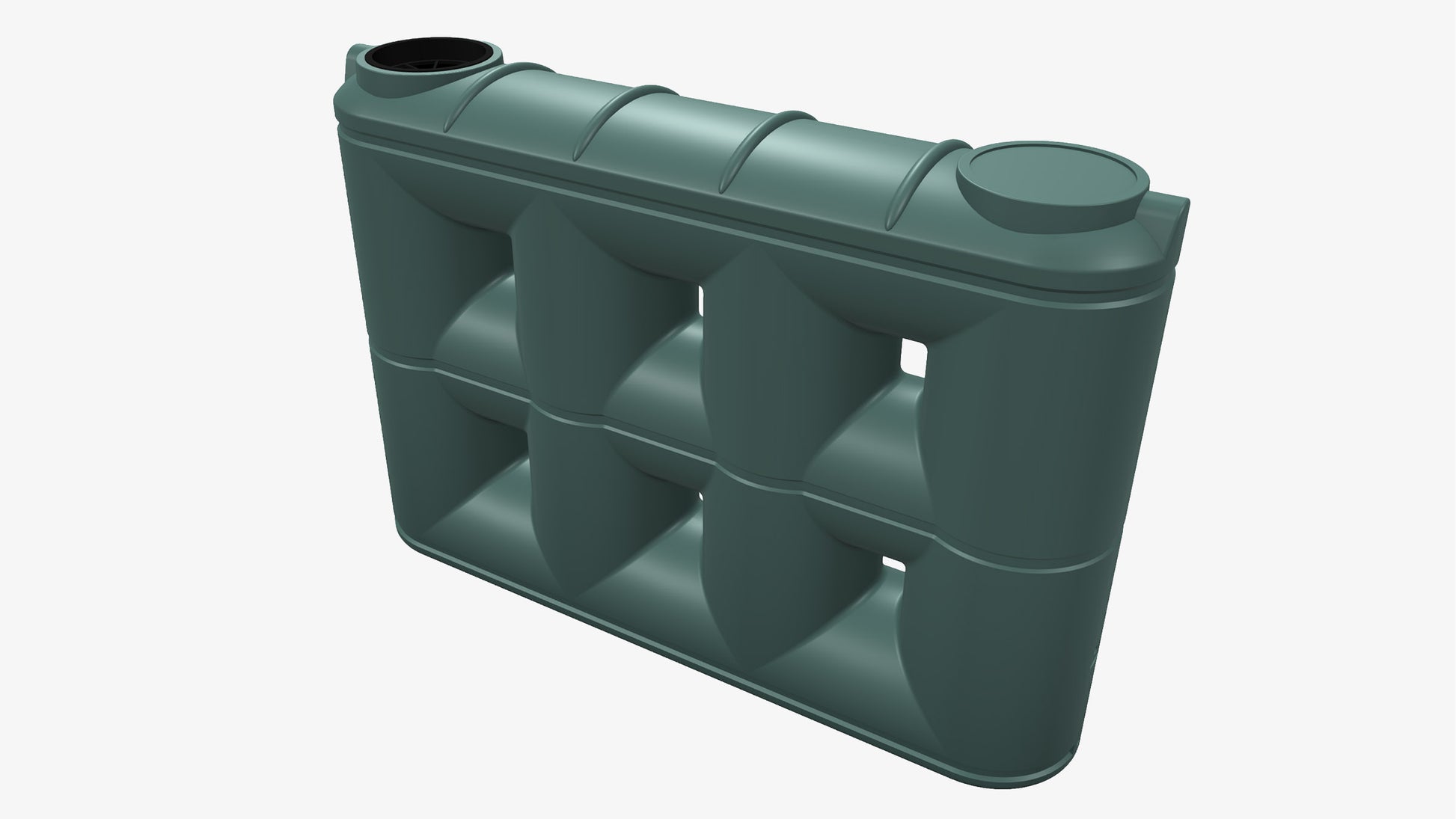

Slimline KPOLY Tanks
Fitting Information
- Inlet (Fitted With a Leaf Strainer)
- 2000L Low – The inlet is located at the centre of the tank.
- 1000L/ 2000L/ 3000L/ 4000L/ 5000L Low – The inlet is located at one end of the tank.
- 5000L – The inlet is located at the centre and either end of the tank.
- Ankle Height Outlet (25mm Sealed Brass)
- Moulded into both ends of the tank.
- Bucket Height Outlet (25mm Sealed Brass)
- 1000L/ 2000L/ 5000L/ 5000L Low - Moulded into both ends of the tank.
- 3000L / 4000L - Moulded into the tank at the opposite end as the inlet.
- 2000L Low - Not available.
- The 25mm outlets in the tank come sealed so you will have to drill these out using a 28mm holesaw to then attach the ball valve or pump connection pipe (flexible coupling).
- Overflow
- Overflows are moulded into the tank at the top of each end. You can attach gutter flange / Mozzie Stoppa according to your requirements.
