5000L Garantia LiLo Underground Water Tank
Width
2300
mm
Length
2890
mm
Height
1315
mm
Toilet Flushes
833
Washing Machine Loads
63
Loads
Hand Watering Hours
5
Hours

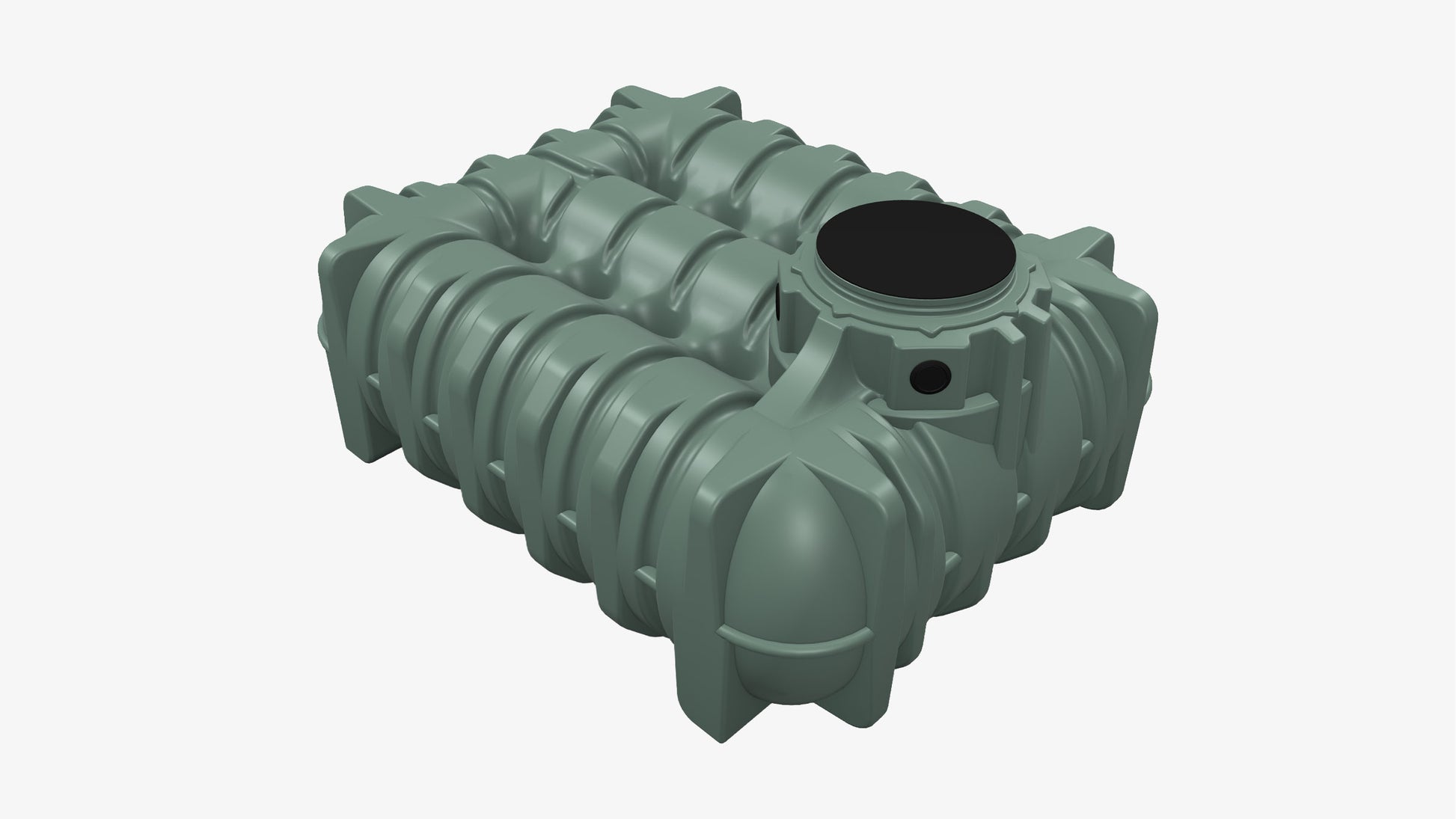

5000L Garantia LiLo Underground Water Tank
With a 5000 litre capacity, the innovative Garantia Lilo tank is specifically designed for storage underground, providing all the extra water you need, conveniently and economically.
Tanks are typically buried out of sight beneath a driveway or under your front or rear lawn, which also helps to keep the water cool.
Due to the Lilo Flat Rainwater Tank being underground, no rain or sunlight can penetrate it – keeping the water storage free from UV and reducing temperature fluctuations.
Underground water tanks can be used for water retention.
STANDARD INCLUSIONS

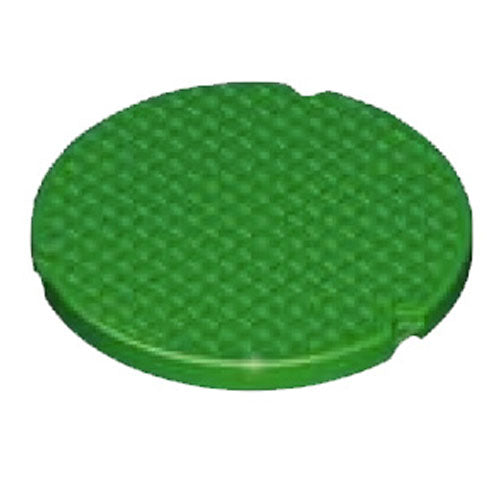

Pedestrian Lid

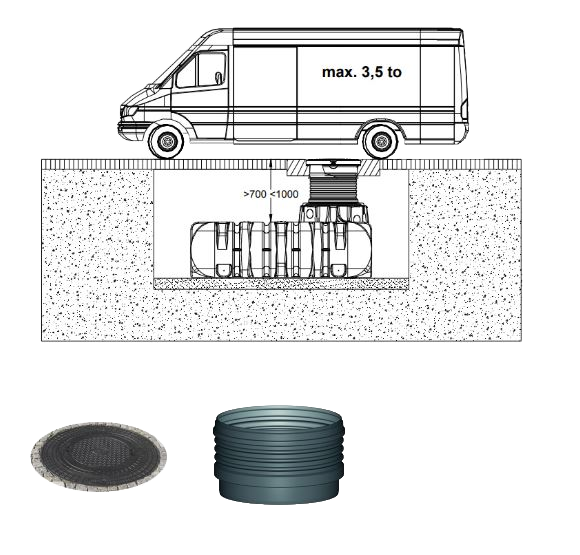

Installing Under A Driveway
Driveway Package
- Class B125/DIN EN124 (in combination with Li-Lo telescopic dome shaft), consisting of a cast cover with a ⌀ of 65cm and cast frame with a ⌀ of 72.5cm.
- The driveway package is an optional extra and is required when installed for vehicle loading.
- If placing tank under a driveway, a trafficable/car lid and riser (dome shaft) is required. The GARANTIA Li-Lo Rainwater Underground Tank with the cast iron cover (Class B) and cement support ring are suitable for installation in light traffic areas (max. total load 3.5 ton).
- The tanks are not to be installed in areas where heavy goods vehicles are driven. The areas driven by light traffic must have a compacted earth covering of not less than 700 mm (27.6 inch) and a maximum of 1000 mm (39.4 inch). Under no circumstances is the load caused by vehicles to be transferred to the tank.
Space Saving Underground Install
Doesn't Require Concrete To Anchor
Protected from UV and Sunlight Exposure
