These pumps are suitable for our Urban water tank range only. For rural tank pumps, please contact us for advice.
These pumps are suitable for our Urban water tank range only. For rural tank pumps, please contact us for advice.
1990mm
3280mm
1040mm
**All Dimensions Are Nominal
The KPoly range of tank colour is a “closest in representation” to the true corresponding Colorbond colour.
From$1,771.00
Delivery is INCLUDED in this price. There won’t be delivery charges when you place the order.
Only available for NSW METRO- Check If We Deliver to Your Postcode

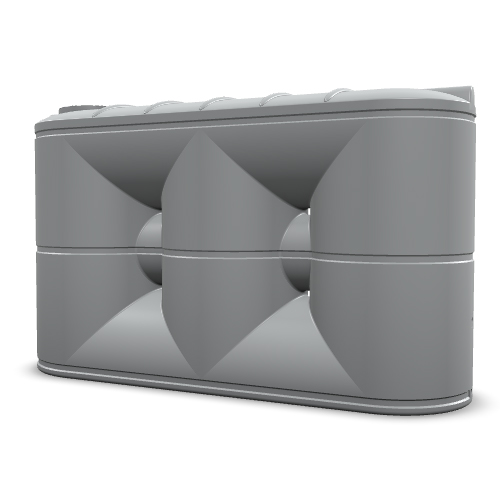

With its large 5000 litre capacity in a low profile, it is suitable to place against under the window against the wall of a house or granny flat. Great to capture rainwater for use in the garden, or household applications such as toilets and laundries.
*Please note: We do not recommend drinking tank water when a potable supply is available unless it is appropriately filtered to remove potentially harmful contaminants.
Delivery To Your Slab
On the day of delivery, the delivery crew will call the site contact or end customer one hour prior to arriving.
We will deliver the tank with 2 staff using a trolley and will place the tank onto the prepared base provided the access is clear, flat and has no steps.
If our delivery staff cannot get the water tank to the slab using the trolley, then they will convey the tank into the property as far as is safe and practicable.
The customer will then need to make their own separate arrangements final conveyance of the water tank to the prepared pad.
Inlet:
2000/5000 Litres Tank – The inlet (fitted with a leaf strainer) is located at the centre of the tank.
3000/4000 Litres Tank – The inlet (fitted with a leaf strainer) is located at one end of the tank
Outlet:
A 25mm sealed brass outlet is moulded into both ends of the tank at ankle height to enable you to attach the ball valve / pump according to your requirements.
A 25mm brass outlet is also moulded into the tank at bucket height at the opposite end as the inlet.
The 25mm outlets in the tank come sealed so you will have to drill these out using a 28mm holesaw to then attach the ball valve or pump connection pipe (flexible coupling).
Overflow:
Overflows are moulded into the tank at the top of each end (attach gutter flange / Mozzie Stoppa according to your requirements)
Joining two or more tanks together is easy with the use of flexible coupling (made to suit your required length, price on application) and an additional 25mm ball valve to connect to a pump.
| Color Names | Colorbond Equivalent | |
|---|---|---|
| Black | NIGHT SKY® | |
| Slate Grey | WOODLAND GREY® | |
| Boulder Grey | BASALT® | |
| Birch Grey | DUNE® | |
| Native Grey | WALLABY® | |
| Armour Grey | WINDSPRAY® | |
| Gull Grey | SHALE GREY® | |
| Earthtone | BUSHLAND® | |
| Autumn Brown | JASPER® | |
| Ravine | GULLY® | |
| Tidal Green | MANGROVE® | |
| Rivergum | WILDERNESS® | |
| Mist Green | PALE EUCALYPT® | |
| Heritage Green | COTTAGE GREEN® | |
| Smooth Cream | CLASSIC CREAM® | |
| Merino | PAPERBARK® | |
| Desert Haze | SANDBANK® | |
| Wheat | Not Available | |
| Dusk | EVENING HAZE® | |
| Inlet Beige | COVE® | |
| Beige | Not Available | |
| White | SURFMIST® | |
| Charcoal | MONUMENT® | |
| Mountain Blue | DEEP OCEAN® | |
| Metal Grey | IRONSTONE® | |
| Heritage Red | MANOR RED® | |
| Terrain Red | TERRAIN® |
| MP Colour Code 711UV | Micropellets Name | Colorbond Name | Known As |
|---|---|---|---|
| RT711UVBLK | Black | NIGHT SKY® | Black |
| RT711UVSG | Slate Grey | WOODLAND GREY® | Slate Grey |
| RT711UVBGRY | Basalt Grey | BASALT® | Boulder Grey |
| RT711UVBIRCHG | Birch Grey | DUNE® | Birch Grey |
| RT711UVLGRY | Light Grey | ||
| RT711UVWGRY | Wallaby Grey | WALLABY® | Native Grey |
| RT711UVAG | Armour Grey | WINDSPRAY® | Armour Grey |
| RT711UVGULLG | Gull Grey | SHALE GREY® | Gull Grey |
| RT711UVBUSHG | Bush Grey | BUSHLAND® | Earthtone |
| RT711UVCLAYB | Clay Brown | JASPER® | Autumn Brown |
| RT711UVGULLY | Gully Brown | GULLY® | Ravine |
| RT711UVMGROVE | Mangrove Green | MANGROVE® | Tidal Green |
| RT711UVRG | Rivergum | WILDERNESS® | Rivergum |
| RT711UVMG | Mist Green | PALE EUCALYPT® | Mist Green |
| RT711UV2031 | Heritage Green | COTTAGE GREEN® | Heritage Green |
| RT711UVSC | Smooth Cream | CLASSIC CREAM® | Smooth Cream |
| RT711UVMB | Merino Beige | PAPERBARK® | Merino |
| RT711UVBEACH | Beach | SANDBANK® | Desert Haze |
| RT711UVW | Wheat | Wheat | |
| RT711UVDUSK | Dusk | EVENING HAZE® | Dusk |
| RT711UVSCOVE | Sandcove | COVE® | Inlet Beige |
| RT711UVBEIGE | Beige | Beige | |
| RT711UVOFFW | Off White | SURFMIST® | White |
| RT711UVSTONE | Stone | MONUMENT® | Charcoal |
| RT711UVMBLUE | Mountain Blue | DEEP OCEAN® | Mountain Blue |
| RT711UVBLUES | Bluestone | IRONSTONE® | Metal Grey |
| RT711UVHR | Heritage Red | MANOR RED® | Heritage Red |
| RT711UVTRED | Terrain Red | TERRAIN® |
The base preparation guide should be taken as a guide only. Specific details on the construction of a tank base should be referred to an engineer for formal advice. Kingspan Water & Energy accepts no responsibility for the failure of a tank base.
The KPoly range of water tanks come with a 10 years replacement warranty.
Calculate the delivery price of your water tank or check out our supply and install service in NSW Metro areas.
If you are an owner of a water tank in need of servicing, get in touch with our service team and we'll look after you.
Need help? Our friendly water tank advisors can assist with any question you might have before purchasing a water tank.
